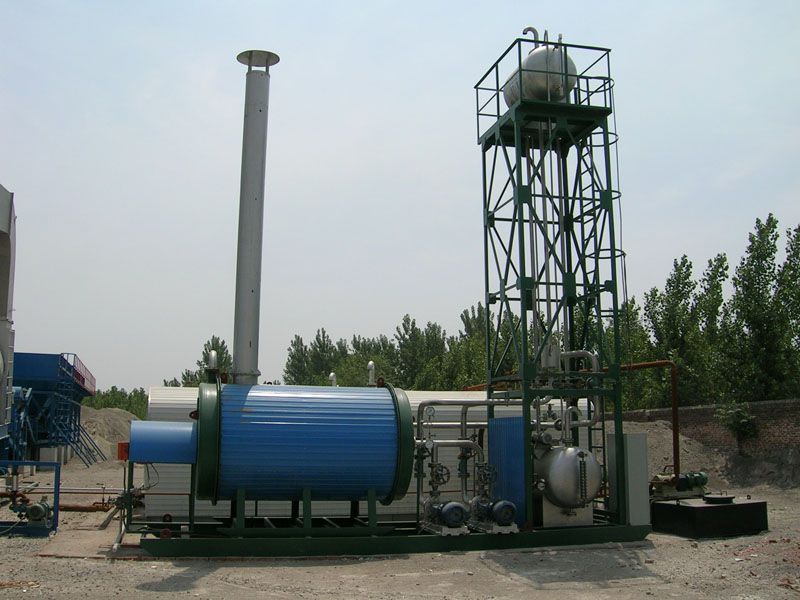

Diesel/gas Thermal Oil Heater

Diesel/gas Thermal Oil Heater is a special industrial furnace with high efficiency and energy saving. It uses coal, heavy oil, light oil and natural gas as fuel, the hot transfer oil as heat carrier, the use of hot oil pump in a sealed system to force liquid phrase circulation to transport heat energy to the heat equipments, after then, most of the waste heat return to reheating.

Send Inquiry

Product Description

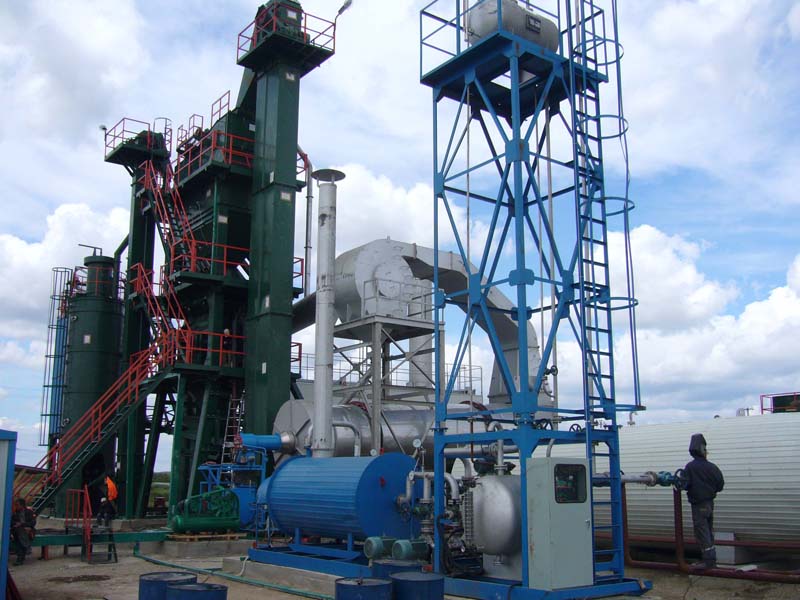

CXTCM Diesel/Gas Thermal Oil Heater is one kind of industrial furnace with high efficiency and energy saving. It is mainly used in industrial asphalt heating and insulation, as well as chemical , textile and other industries. It uses light oil and natural gas as fuel, the hot transfer oil as heat carrier, the use of hot oil pump in a sealed system to force liquid phrase circulation to transport heat energy to the heat equipments, after then, most of the waste heat return to reheating.

Diesel/Gas Thermal Oil Heater Parameter (Specification)

Type Data Parameters	180 Y(Q)	350 Y(Q)	580 Y(Q)	820 Y(Q)	940 Y(Q)	1200 Y(Q)	1400 Y(Q)	1750 Y(Q)	2400 Y(Q)	2900 Y(Q)	3500 Y(Q)	4000 Y(Q)	4700 Y(Q)	5800 Y(Q)	7000 Y(Q)
Rated heat output 10⁴Kcal/h	15	30	50	70	80	100	120	150	200	250	300	350	400	500	600
Designed Pressure MPa	0.6	0.6	0.6	0.6	0.6	0.7	0.7	0.6	0.6	0.6	0.6	0.6	0.7	0.7	0.8
Max. working temperature ℃	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320
Thermal efficiency %≥	80	80	80	80	80	80	80	80	80	80	80	80	80	80	80
Cycle flow rate m³/h	40	40	60	100	100	100	100	160	160	200	200	260	260	300	340
Caliber of the pipe connected DN	65	65	80	100	100	125	125	150	150	200	200	200	200	200	250
Fuel available	Oil or gas

Reserve the right to change the parameters without prior notice.

Diesel/Gas Thermal Oil Heater Features

◆ High operating temperature can be obtained under normal pressure or lower pressure.

◆ The liquid phase transmits heat energy, and the hot transfer oil is less than 70 times the saturated steam pressure of water at 300 degrees Celsius.

◆ Stable heating and precise temperature harmonization are possible.

◆ It has complete operation control and safety detection device.

◆ Thermal efficiency can be maintained at an optimal level under all levels of load.

◆ Save electricity, fuel, water and cost, 3 to 6 months to recover the investment.

Diesel/Gas Thermal Oil Heater Supporting facilities

Rain-Protected Control Cabinet

Imported Burner

Supporting Auxiliary Machine
